Biomass Burner Core Veneer Dryer Machine
The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.
Description
product description

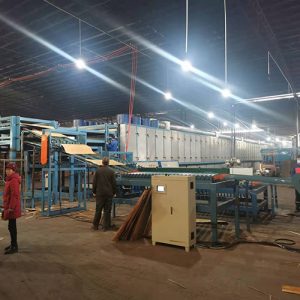

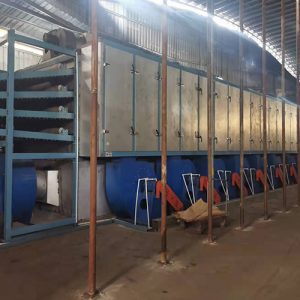

Shine veneer roller dryer is a new generation wood veneer drying machine. By adopting latest international pressure contact veneer drying technology, Shine roller veneer dryer has the advantage of high veneer drying capacity, lowest operate cost, energy efficiency and high quality dried veneer. The veneer after drying has the uniform moisture content, flat, no waviness and shrinkage is kept to a minimum. The surface is in good condition for gluing for plywood process.
Our patented product——Biomass Burner, which can burn the broken waste wood directly as a fuel to provide a heat source for the roller veneer dryer. It is energy-saving and environmentally friendly, and reduces the drying cost greatly .
Advantages of 4 Deck Veneer Dryer
1. Shine biomass veneer dryer has the features of high veneer drying productivity,energy efficiency, lowest drying veneer cost and perfect veneer drying effect.The composite running cost is only about $12/cubic meter,which can improve customers’ profit space greatly.
2. Customized working width of the 4deck veneer dryer is 4500m,the main body of the core veneer roller dryer is 40 meters length,divided into 36 meters drying chamber,and veneer cooling chamber 4 meters length.
3. The working layers, working width, and heating length of the Shine veneer dryers are available to be customized as per customers’ specical requirements.
4. Shine Machinery is the only one factory in China who can make not only veneer dryer but also the heat source of the roller dryer, namely, biomass burner.
5. Unlike the steam boiler or thermal oil heater which are traditional heat source installed for the dryer, the biomass burner is the exclusive patented product that can completely burn crushed wood chips, and tree barks directly as the fuel, solving the waste accumulation problem in the veneer and plywood making factories. At the same time, the fuel cost is reduced mostly.
6. Professional R&D team can design different veneer dryer models according to customers’ special requirements.
7. Perfect after-sale service system can ease the mind of customer after installation as we supply 24 online services and remote operation. Regular follow up service for old customers, and sufficient spare parts supply in time.
Product Parameters
Deck |
4 |
Roller material |
Q235B, φ102 special shaft tube |
Heating area length |
34m |
Cooling area length |
4m |
Veneer thickness and size |
0.6-8mm |
Veneer water moisture |
Fresh veneer to about 8-10% |
Heating material & drying temperature |
Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
Drying capacity (m³/day) |
120 |
Veneer transport speed |
5-22m/min，16A chain |
Hot air blower |
Power: 11KW（17pc） |
Traction motor |
Power: 5.5KW，frequency control（4pc） |
Cold air blower |
Power: 4KW（8pc） |
Air intake fan |
Power: 15KW（2pc） |
10 ton biomass burner |
Power: 16.5KW |
Total power |
287.5KW |
Actual electricity consumption |
About 200kwh per hour |
Overall Dimension(L*W*H) |
49m×11m×3.5m |
Customer Case
Shine roller veneer drying machines have been exported to more than 20 countries such as Latvia, Indonesia, Vietnam, Thailand, Laos, Malaysia, Cambodia, Myanmar, Brazil, Bolivia, South Africa, South America, Ethiopia, The Republic of Congo and etc.
Certificate
Exhibitions and Customer Visits
Product Packaging And Transportation
Package: The normal package for machine is containers,nude package,but the spare parts is wooden box.If export to European countries,we will use PE film for packing it or according to your requests.
