Conveyor Mesh Belt Dryer Machine

The face veneer after drying has the uniform moisture content, flat with no buckle or end waviness. The surface is in good condition before gluing into plywood.


Conveyor Mesh Belt Dryer Machine

Veneer mesh dryer is an expert drying device, particularly for the face veneer thickness range from 0.2 to 0.4mm. Mesh dryer is a very good dryer machine for the face veneer-making factory. Usually, the continuous veneer ribbon is dried first and then cut into the required size to get the biggest yield. The face veneer after drying has a uniform moisture content, flat with no buckle or end waviness. The surface is in good condition before gluing into plywood. this machine is used for drying sliced or peeled veneer in the veneer production line, it consists of veneer inlet , veneer drying area, veneer cooling area, veneer outlet, its drying size can be customzied in line with the customers’ individual specific needs in terms of the veneer drying capacity, veneer drying technology, and working space in order to improve the drying veneer productivity with low investment.

Veneer mesh dryer for drying wood face veneer humidity, the initial wood face veneer moisture content will be like 60%, some even 80%, after drying, in the end, the veneer moisture content will become 5%-10%, so you can make plywood board, or wooden furniture and others, or you can sell the dried wood veneer to these factories at a high price.

And one of the very big advantages of a face veneer mesh belt dryer is that it can satisfy the drying capacity which you want. Some clients require a drying capacity of 30-40m3/per day, some require 60-70m3/per day, and some require 100m3/per day. According to the veneer drying capacity, the roller dryer will be on different floors and different lengths.

Recently we are producing one set of big mesh dryers for one Turkey client, who requires a drying capacity of 100m3 over 20 hours. So the veneer roller dryer will be 4 floors, and length longer.

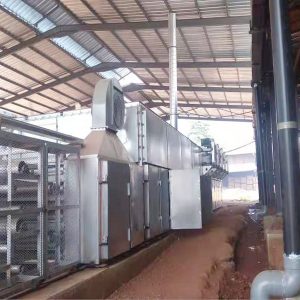

Veneer mesh dryer

Veneer Mesh Belt Dryer Machine is designed to handle the drying process of face veneer, back veneer and long core veneer. For processing the surface veneer and long core veneer, this veneer dryer can avoid the break of the veneer, then can raise the veneer utilization ratio and production output. All outfitted air blowers and screens are high-quality products, so it can increase the durability and useful life of the machine. We can design the machine upon our customer’s requirements, such as the decks and sections, but fire our customer should mention the production capacity they want, the initial moisture, and the final moisture.

Mesh Belt dryer

Veneer Mesh Belt Dryer

The veneers move through the drying machine in several layers along rollers, as the machine’s name indicates. The target moisture level after drying is around 6-7% which is precisely the right moisture level for gluing veneer. A sufficient drying temperature is 145-160ºC and the veneers pass through the machine in about six minutes. Drying conditions and the moisture of the veneers are monitored continuously to make sure that the drying quality remains even. Usually, the original moisture is 70-80%, and after drying, the moisture is about 10%

The equipment is flexible in configuration, and there are many materials for drying at one time, and it can be continuously produced and dried, which is convenient to use and greatly reduces labor. The structure is simple, easy to install, can run for a long time, can enter the interior of the box for maintenance when the fault occurs, and the maintenance is convenient.


1. This machine is one of the main machines for plywood production. The inlet width can be customized from 1.35 meters to 6 meters
Veneer dried thickness is available in the range of 0.2mm-5.0mm.
2. The dryer can effectively and evenly remove the moisture in the veneer to achieve the desired final moisture content.
3. The heating medium can be heat transfer oil or water vapor.
4. The whole machine can be divided into three parts: transmission, heating, and cooling.
5. Reasonable design and good parts make roller and mesh veneer dryer save energy and transfer heating fast.
6. The dryer machine uses the latest ultra-low noise centrifugal ventilator, which reduces noise, good for workers.
7. The wind speed is faster and the air volume is higher, therefore the drying speed is much quicker.
8. Adopt variable frequency speed control, can adjust feed speed according to your veneer thickness and moisture content, to get a perfect drying effect.
9. The machine is usually designed and customized according to the user’s requirements (such as veneer size, drying capacity, and workshop space ).
10. Mainly used to remove extra moisture from the veneer.
11. The heat medium can be thermal oil or hot steam.
12. Roller gear drive system help keep the dried veneer smooth and flat.
13. Speed adjustable according to different veneer MC and veneer thickness.

Product Parameters

product name

Mesh belt dryer

Working Width


Heating Section

6 sections×3000mm=18000mm

Cooling Section

1 section×2000mm=2000mm

veneer feeding section


Total Power


Transmission speed


Drying temperature


Drying Thickness



Drying system
Hot-air curtain style:
In this type, the air is circulated in (direct)direction, radiator adopts steel aluminum alloy sheets, is heated with steam and oil the hot-air emit into the top and bottom bellows by a centrical fan, and injected with high speed into both sides of the veneers. The veneers are dried uniformly.
Driving system:
The drum type: the veneer feed lengthwise, top and bottom rollers are driven by the chain, and the veneer advance pressed by the top roller weight. The veneer is dried when come through the rollers and air nozzle with flat smooth surface.
Control system
According to the users’ requirement, we have a manual operation, step less speed change, automatic computer controlling system, the speed can be adjusted when different thicknesses and different moisture of the veneer is dried.
Structure selection
The contour structure is metal material (iron plate, aluminum plate, stainless steel, etc.) asbestos keep temperature with the brick body, we can produce according to your requirement and also remake the old machines.
Heating source system:
You can choose the heating systems according to your conditions and environments such as a hot air stove, steam stove, thermal oil stove.





Before loading, we will first install 3 or 4 sections and test their working conditions and every parts are suitable.
During loading, we will pack and mark, so you will easily classify different parts.
After loading, we will offer all drawings including foundation drawings and assembly drawings to you. So you can easily install a mesh veneer dryer.
Our factory mainly produces plywood production machines, from the wood log to the end product plywood, we offer these machines. Such as veneer production line, veneer dryer, veneer glue machine, plywood cold press, plywood hot press, plywood sizing machine, and sanding machine.
Our factory insists offer a good quality machine to each of our clients, with our machines, you can produce good quality plywood board, and the machine will be a long life span.
Welcome to contact us for more information.
We will share the machine working video with you, and offer the specification and price for you.


1. Machine packed nude or in plastic film
2. Spare parts and electrical parts and accessories are all packed in plywood crates.
3. Fixed in a container with steel wires for safety.


Q: Are you a factory or a trading company?

A: Yes we are a factory that manufactures the machines on our own.

Q: What is the delivery time?

A: Normally will be 30 days after in receipt of the down payment by T/T wire or original LC at sight.

Q: Can we visit your factory?

A: Welcome to visit us! Every day we have customers from different countries. By now, we have exported to more than 50 countries around the world.


About Shine

Shandong Shine Machinery Co.,Ltd has more than 100 employees. The company’s headquarters is located in Gaotang Industrial Park, a beautiful water city in the north of the river, and the production plant covers a total area of 100 mu. The company specializes in the production of wood veneer dryers, bridge formwork, automated livestock and poultry breeding equipment, special equipment for the production of construction materials, etc. With the advantages of many years of research and development, production, service and production capacity, the company has always been in the leading position in the same industry. Shine Machinery provides high performance, high quality products and one-stop service for customers, and can tailor different products to meet the needs of customers in different situations and provide customers with fast and optimized system solutions.

The company is far-sighted and implements a modern enterprise management system, making use of new sales concepts and service systems. With an annual investment of 20 million in scientific research, the company joins forces with various industrial universities in China to study the application of high-end technology, so that the various products of shine Intelligence are always at the forefront of technology in the industry. The company is very strict about the quality of its products, and every piece of equipment it produces meets the ISO9001 quality management system certification. The company has large CNC gantry milling machine, data flame cutting machine, plane mill, universal milling machine, vertical and horizontal sawing machine and other large production equipment, the introduction of foreign advanced technology, so that “Shine” equipment with reasonable design, reliable performance, high quality, low energy consumption, easy to operate, high output and many other advantages. The company’s products have won the praise of our customers for their high precision and high cost performance.


A: We are a factory who manufacture the machines by ourselves.
A: Normally will be 30 days after getting deposit or original LC.
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paid against copy of B/L in CFR) b. 100% irrevocable L/C at sight.
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 50 countries customer.
