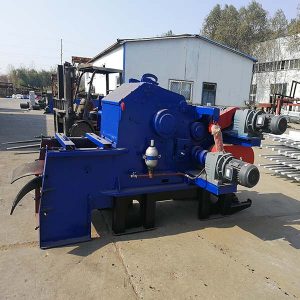

Logs Wood Shredder Chipper Machine
Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.It is the ideal equipment for biomass power generation enterprises.
Description
Wood chipper, also known as wood chip machine, is a special equipment for producing high-quality wood chips. It can cut pine, miscellaneous wood, poplar, Chinese fir and other logs and moso bamboo into uniform pieces. It can also slice various materials such as veneer, veneer, bamboo branch, corn stalk, cotton stalk, reed and other non wood fiber poles. Users can adjust the specifications of wood chips within a certain range according to their needs. The product has regular discharging rules and high output. It is an ideal equipment for the material preparation section of industrial production such as paper mill, wood-based panel and medium fiber board and all kinds of wood chip production bases. All models can be customized according to customer needs.
Wood chipping machine is one of the normally used machines in wood working field. it is used to chip the wood pieces, wood blocks and other waste wood into small pieces. The wood chippers machine can be used together with shine roller veneer dryer and biomass buner. as the wood chips size of the biomass burner can not be so big size. the wood chipper can chip the waste wood into pieces about size 3-4cm. except for wood veneer dryer, the wood chipper can also be used in other field of woodworking filed. it is very high efficiency chipping machines. wood crusher Reasonable structure,simple operation,high automatic level,high safety coefficient and production capacity,less manpower,easy maintenance.It is the ideal equipment for biomass power generation enterprises.
Product details :
It mainly consists of body, knife roller, top and bottom feed mechanism, feeding device, hydraulic system.
Knives was fixed on the roller by special bolts. As different thickness of raw material, the top feed mechanism could be adjusted automaticly, then chips drop through screen, chipping again for large size material.
By hydraulic system, the cover shell of machine could be opened freely, easy for user to replace the parts and knives, also convenient for adjusting the space between knives and dead knives.
wood chipper machine is mainly used to crush big wood logs or timber wood branches, furniture waste, long bamboo into small chips , the thickness of last chips is 1.5mm/3mm, length and width about 2050mm, the knives gap can be adjusted,then outlet chips dimension will be adjusted.wood chipper machine contains 4m length feeding belt conveyor, when conveying logs,the speed can be adjusted.also it can connect with outlet conveyor to transport away crushed wood chips.Wood chipper machine has limit feeding door dimension, raw wood logs should be smaller than feeding door, but length no limit, feeding speed can be adjusted. The hydraulic system is consist of oil pump, hydro cylinder, which can start up the cover for blades changes and maintenance.
Strong structure ensure wood chipper run steadily without ground foundation. and the blade material is H13, anti-wearing, prolonging service life, which can cut hard wood.Large inlet size, applied to a variety of materials. feeding method adopts feeding chain plate(Q345 steel plate material), feeding material smoothly and evenly.
Normally, Bolida Machinery adopts two Feeding System: feeding blet conveyor or feeding chain conveyor (according to different material)
For large capacity drum wood chipper wood crusher , it usually adopts chain conveyor instead of belt conveyor.Chain Conveyor with long lifetime than belt conveyor.
If your raw material are hard wood, wood pallets, waste building templates or other wood, for large wood crusher, the chipping room will equip with hammers instead of traditional knifes. The high rotation spped hammers will beat thmaterial into small size wood chips;The material of hammers is high manganese steel, with hard alloy particles welded on the surface, anti-wearing, prolonging service life. Hammer can be used with double-side, can reach 3000-5000 tons.
The uniquely designed machines feature low noise,high torque and wide applications,they serve the functions of shearing,tearing,fracturing,breaking and atuo-discharging when in work mode.they can be applied to crush plastics,cable,wire,PCB,waste fridge,washing machine,air conditioner ,television,computer and office supplies like printer,copying machine and fax machine.Furthermore,scrap rubber,engineering resin,municipal waste,woods,pipes and other massive materials are also in their applicable scope. They have processing capability ranging from 1-5 tons per hour.
The drum wood chipper is composed of a machine base, a knife roll, an upper and lower feeding mechanism, a feeding device and a hydraulic buffering system, and is mainly used for crushing materials such as logs, small-diameter wood, branches, boards, slats and bamboo.
Feature of wood chipper:
1. This product optimizes the rotor structure and blade material, so that the output is larger and the rotor maintenance is convenient
2. The bearings are optimized in the form of labyrinth, so that dust is not easy to enter. The bearings are equipped with automatic lubrication device, which does not need manual lubricating oil filling.
3. Optimize the electrical system, adopt automatic control and remote control operation, if the upper rotating part of the machine encounters resistance, it will automatically reverse rotation, so as to protect the main motor from high load operation.
4. The frame of the whole machine is made of square tube manganese steel, which is widened and lengthened to ensure the stable operation of the machine.
5. Screen mesh size is customized for different requirements on size of end product.
|
Model |
BX216 |
|
Input conveyor length(m) |
6 |
|
Output conveyor length(m) |
11 |
|
Tool roll diameter（mm） |
600 |
|
Feed port size（mm） |
230*500 |
|
Flying knife number |
2pc |
|
Tool roll speed (r/m) |
590 |
|
Maximum diameter of processing raw material（mm） |
230 |
|
Feeding speed（m/min ） |
35 |
|
Wood chips size（mm） |
30 |
|
Capacity（ton/h） |
7-8 |
|
Main motor power（kw） |
55 |
|
Feed roller motor power（kw） |
3-4 |
|
Oil pump motor power（kw） |
1．5*1 |
|
Weight（kg） |
4070 |
|
Overall size（mm） |
2600*1900*1210 |
|
Conveyor motor power（kw） |
3 |
How to check the quality of the wood Chipper?
It main depends on the finished wood chips. A good wood chipper can crush wood chips with even length ,unifrom wood chips thickness.
Of course, not all the raw material just need two rotary blades.
Different raw materials has difference requirements.
Welcome to contact us and consultant these informations.
