New Wood Veneer Dryer Machine
The biomass burner is Shine patented product. It can burn all kinds of waste wood directly to reduce the drying cost mostly. Compared to steam type or heat conduction oil type veneer dryer, the drying cost is reduced greatly.
Description
video
Plywood Veneer Drying Machine is an important part of plywood production process. The roller dryer machine can be divided into two parts: heating section and cooling section.The heat medium can be oil and heat steam.This veneer dryer machine is very efficient and productive,its drying capacity is 83.2m³/ day 24 hours of 36m veneer dryer. As the veneer is pressed by solid hot platens when working, so veneer will very flat after dry, and the veneer spoil rate is very low.Our biomass burner can use waste wood as fuel and the burning rate can be more than 95%.and also there is no any smoke,which is environment friendly.We have many customers in Indonesia and India using this type dryer.
Drying Temperature is 140-200℃ which is adjustable, Temperature control accuracy ±5℃. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.
The unique heat exchange structure makes the equipment run efficiently and greatly improves the drying output.
The cyclic utilization of hot air has greatly reduced the operating costs of enterprises, improved the quality of veneer sheet materials and increased the production volume.
Insulation: The shell of the machine is insulated by the shell with thickness of 75MM-100MM, so as to achieve the heat in the machine and no loss of air volume.
Heat exchanger: Adopts step by step heat transfer, and different specifications for each section. The hot air in the heat exchanger can be uniformly emitted to the veneer to ensure the veneer drying is uniform.
— Automatic electric control system, frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect
Main Features of Roller Veneer Dryer
1. This model is a straight-through horizontal circulation roller veneer dryer. Its thermal cycle design draws on the advantages of advanced European dryer technology, and adopts an upright centrifugal fan with a volute (flow rate of 45,000 to 62,000 m3/ h).
2. The new type of heat exchanger and the rectangular variable-section spray box make the high-speed jet airflow acting on the surface of the veneer uniform. The hot air blowers in the heating chambers in the front and rear areas are arranged separately from left to right, so as to ensure that the dried veneer obtains a consistent final moisture content at each point.
3.In order to adapt to the humid tropical climate, the length of the cooling open section is appropriately lengthened to facilitate the cooling of the dried veneer and reduce the phenomenon of damp return.
Product Parameters
| Parameter Model | DHS32M |
| Work width（m） | 3 |
| Deck | 2 |
| Veneer thickness（mm） | 0.6-8 |
| Heating area（m） | 28 |
| Drying capacity(m³/h) | 1.8-2.2 |
| Heat exhaustion（10000 kcal） | 63-77 |
| Total power(kw) | 114 |

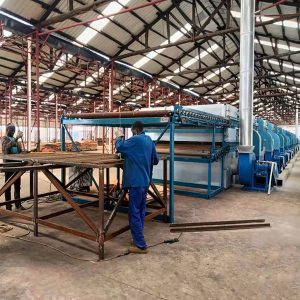

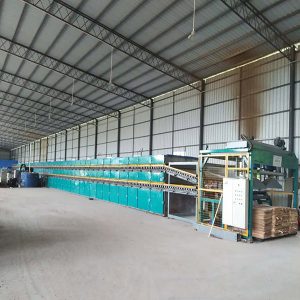

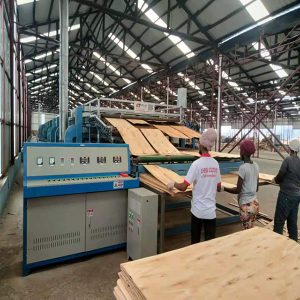

Customer Case
Hot Air Ciculation System
Exhibitions and Customer Visits
Product Packaging
We have a professional R&D team that can design different models according to customer’s special requirement. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, sufficient spare parts supply in time.
