Plywood Face Veneer Dryer Machine

Plywood Face Veneer Dryer Machine is a new generation wood veneer drying machine. It adopts the latest international pressure contact veneer drying technology to ensure the veneer is heated evenly. It can be used to dry rubber wood, eucalyptus, birch, teak, all kinds of hard wood and soft wood veneer etc.
Shine roller veneer dryer has the advantages of simple operation, safety and practicality, stable operation and easy maintenance. The processes of hot pressing-leveling-drying are finished at the same time. The veneer after drying is flat, smooth and without marks and the moisture content is uniform.

Equipped with automatic temperature control and speed regulation system, which can accurately control the final moisture content. Avoid the phenomenon that a large number of veneers are over-dried or do not meet the process requirements.The unique heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.

Biomass burner veneer dryers are renowned for consistently producing high quality veneer with a uniform dry moisture content. Roller dryer machine has the advantages of simple operation,safety and practicality, stable operation and easy maintenance ,hot pressing-leveling-drying are finished at the same time &and others.The roller dryer machine is mainly used in plywood industry, and used to remove moisture from the veneer.The dryer machine can effectively use various resources and occupy a small area.The roller dryer machine can be divided into two parts: heating section and cooling section.The heat medium can be oil and heat steam. We also can do other type veneer dryer such as 1 Deck Veneer Dryer. Face Veneer Dryer ,Core Veneer Dryer, Automatic Veneer Feeder ,4 Deck Veneer Dryer ,2 Deck Veneer Dryer. We can design the veneer dryer according to the needs of ourcustomers.The veneer dryers machine have to be used together with wood chipper , as the wood chips size can’t be larger than 5cm.

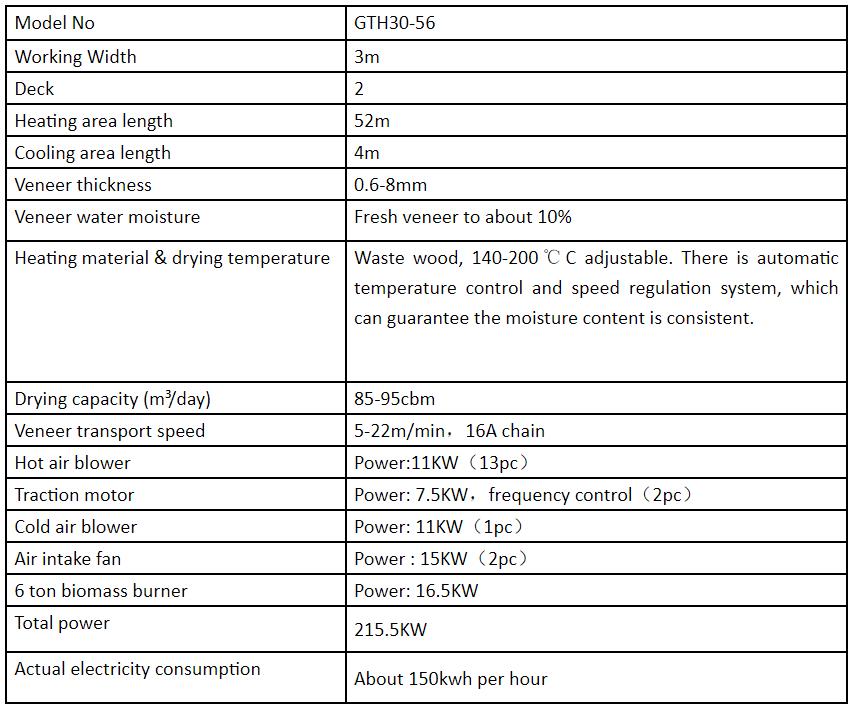

Product Parameters

Advantages of Veneer Dryer Machine

1. The biomass burner, a patented product independently developed by our company, can directly use crushed wood waste as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.
2. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained the national invention patent.
3. The control cabinet has automatic temperature control and speed regulation system, which can accurately control the final moisture content. Simple operation and low failure rate.
4. The temperature in the burner is 40-60 ℃ higher than that of the traditional dryer (steam, thermal oil), and the temperature is controlled at 140-180 ℃, which shortens the drying time and increases the output.
5. After drying, the veneer is smooth, with no cracks, wrinkles, or end ripples.
6. Shrinkage and hardening are kept to a minimum and veneer collapse and honeycomb structure are avoided.
7. We have a professional R&D team which can design different models according to customer’s special requirement.
8. The perfect after-sale service team can supply 24 hours online service.

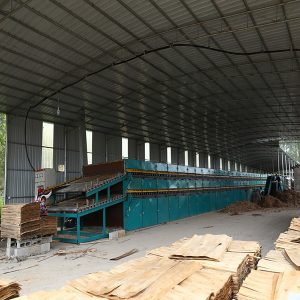

Customer Case

Certificate

Factory

We have a professional R&D team and experienced after-sale service team to supply best drying solution for different customers. Shine roller veneer drying machines have been exported to more than 20 countries such as Latvia, Indonesia, Vietnam, Thailand, Laos, Malaysia, Cambodia, Myanmar, Brazil, Bolivia, South Africa, South America, Ethiopia, The Republic of Congo and etc.

Maintenance:

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. Regularly clean the machine to remove any dust or debris that may accumulate during use.
                                                      2. Check the machine’s heating system and control panel regularly for any signs of damage or malfunction.
                                                      3. Replace any damaged or worn parts with genuine replacement parts as provided by the manufacturer.
                                                      4. Follow the recommended maintenance schedule provided in the user manual to ensure optimal performance of the machine.

Safety:

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. Only trained personnel should operate this machine.
                                                      2. Always wear appropriate safety equipment, such as gloves and eye protection, when handling the machine.
                                                      3. Never touch the heating elements or the control panel when the machine is in operation.
                                                      4. Do not overload the machine beyond its stated capacity.
