Wood Plywood Core Veneer Dryer Machine
Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect.
Description
Wood Core Veneer Dryer Machine
Shine finished plywood veneer drying machine utilizes the latest international technology of pressurized contact veneer drying, which has the advantages of simple operation, safety, practicality, stable operation, easy maintenance, heat pressing- leveling–drying once completed, etc. The cyclic utilization of hot air has greatly reduced the operating costs of enterprises, improved the quality of sheet materials, and increased the production volume. The roller plays a role in ironing the veneer. After the veneer is dried, the veneer is flat and the moisture content is relatively uniform. When the plywood core veneer dryer is located between two roller sets, the lateral direction can be freely contracted, the occurrence of cracks is reduced, and the drying quality is good. The heat dissipation process is carried out in a flat state. In the benign physical process of wood shrinkage, the veneers do not warp and deform, the breakage rate is low, and the rate of the finished product is high. Wood panel veneer dryer of Shine can burn the waste wood directly and other biomass materials and save energy costs greatly for the users.
The 4-deck veneer roller dryer runs without a thermal oil heater or steam boiler. It uses a waste wood-fired air heater/Biomass Burner which is our new patented product. It eliminates heat loss by directly heating air and supplying it to the dryer instead of indirect heating of Oil or water. As the waste wood, waste veneers, tree barks, rind, chips, etc. are the most cost economical fuel compared to coal, gas, steam, or oil, and the burning temperature is high enough to dry veneer to the right moisture content level, the shine veneer roller dryer has the lowest drying cost. The temperature in the biomass burner is up to 800-degree celsius and 140-200 degree celsius in the heating section of the dryer, which is enough temperature to remove the extra moisture from the green veneer.
Features:
- The machine is the main apparatus in the plywood industry.
- It uses to remove moisture from the veneer.
- The heat medium can be thermo oil and heat steam.
- The whole machine can be divided into two parts: the heating section and the cooling section.
Product Parameters
| Parameter Model | DHS30M |
| Work width（m） | 3 |
| Deck | 4 |
| Veneer thickness（mm） | 0.6-8 |
| Heating area（m） | 26 |
| Drying capacity(m³/h) | About 4.8 |
| Heat exhaustion（10000 kcal） | About168 |
| Total power(kw) | 130 |
| Overall size LxW（m） | 39*5.5 |

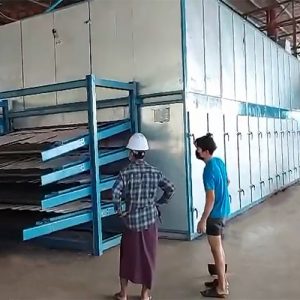

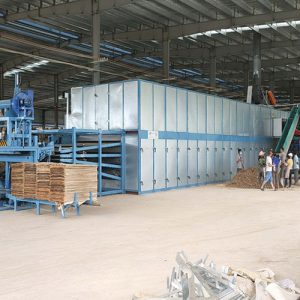

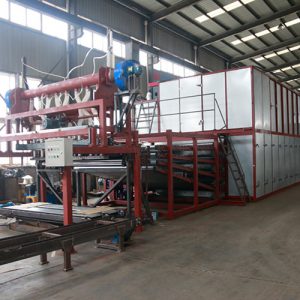

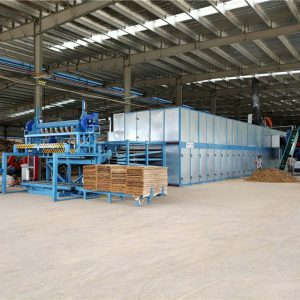

Customer Case
Customer Visits
Certificate
We have a professional R&D team that can design different models according to customers’ special requirements. Perfect after-sale service system can supply 24h online service, remote operation is available on request, regular customer visits, and sufficient spare parts supply in time.
