Wood Plywood Veneer Dryer Machine For Sale

Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve and ideal drying effect.


Wood Plywood Veneer Dryer Machine For Sale

veneer roller veneer dryer machine from China manufacturer is used to remove Excessive moisture, the fresh core veneers’ moisture percent is about 60-80%, then we will use a dryer machine to dry, then the final moisture percent is about 0-15%. the machine specification is not fixed, it needs to be customized according to the client’s requirements. like the moisture of the veneer, the veneer thickness, the veneer size, and the capacity per day, these influence the machine specification.

Our company developed and produced a new type of wood veneer dryer for sale, whose combustion heating system can obtain materials on site. waste wood produced by rotary cutting veneer, waste bark, and waste veneer can be burned. It not only solves the key problem of the high fuel cost of veneer drying equipment but also solves the serious problem of waste accumulation in wood processing plants.

Specializing in the production of China veneer dryers for sale, the products include steam heating veneer dryers for sale, heat transfer oil heating veneer dryers, hot air heating veneer dryers, a high degree of equipment automation, uniform drying, and good effect. The product is divided into multiple sections for heating, circulation, and dehumidification, and the wind direction adopts a multi-section change mode, with a high degree of automation and uniform moisture, which is veneer processing.

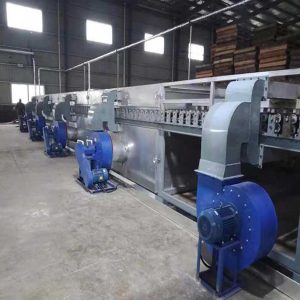

one deck veneer dryer

This dryer is for drying peeled veneers, the machine has special heating coils. This dryer is ideal for drying wood veneers. The machine can dry veneers of various thicknesses and various moisture contents. The dryer is ideal for drying rotary cuts and sliced veneers. It is a specially designed highly energy-efficient machine. Any wood species can be dried in this machine.

Roller drying machines mostly is used for plywood core veneer drying, with veneer thickness of 0.6-8mm. it has the advantage of long work life, easy to maintain, and better veneer drying performance.
heating way: Biomass burner、steam or heating oil

veneer dryer

Working principle of Veneer Dryer

Shine Biomass Veneer dryer is a product in the design of the continuous roller pressure type of hot air cylinder, it is using the most advanced continuous pressurized contact and its working principle is veneer drying technology in a steel tube under the clamping roller, two by preheating the oven temperature to 140, and then enter the upper and lower roller and through the hot air pipe to the single board upside down between hot high pressure blowing for quick dry, so you can make the veneer smooth moisture content after drying of uniform, And it has the characteristics of high-temperature roller and wet veneer direct contact heat transfer, high thermal efficiency, and small thermal loss.


1. The machine is the main apparatus in the plywood industry.
2. It uses to remove moisture from the veneer.
3. The heat medium can be thermo oil and heat steam.
4. The whole machine can be divided into two parts: the heating section and the cooling section.

Product Parameters

Roller material

Q235B, φ89 steel pipe

Heating area length


Cooling area length


Veneer thickness


Veneer water moisture

Fresh veneer to about 10%

Heating material & drying temperature

Waste wood, 140-200C adjustable. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent.

Drying capacity (m³/day)

About 1215m³/day

Veneer transport speed

5-22m/min16A chain

Hot air blower


Traction motor

Power: 5.5KWfrequency control1pc

Cold air blower


Air intake fan

Power: 11KW1pc

2-ton biomass burner

Power: 15KW

Total power


Actual electricity consumption

About 50kwh per hour


Space covered about


Heat medium obtain types of Jet Roller veneer Dryer

External Type Biomass Burner, Built-in Burner, Hot blast stove Type: the air injection roller type veneer dryer produced by our factory is specially equipped with energy saving and high-efficiency hot blast stove considering that the user does not have the choice of steam type machine. The working principle of the hot blast stove is to produce high temperatures by burning waste wood or raw coal from the veneer factory through the hot blast stove. Under the action of a high-speed rotating fan in the machine, the hot air is sent to the nozzle located in the machine and then the strong injection is passed through the nozzle. Spray the hot air onto the upper and lower surfaces of the veneer in operation, to achieve the effect of drying.


Rollers play a very important role in veneer dryers, especially roller-type veneer dryers. The function of the upper rollers is to press the veneer by its weight. In this way, the veneer is very flat, with no end waviness, and no crack after drying. The lower rollers are driven by chains and gears with the function of delivering veneer.

The planer (rotary) cutting veneer is fed into the inlet of the jet roller type veneer dryer, and through the relative rotation of several pairs of upper and lower rollers located inside the wood veneer dryers, the planning veneer moves forward in a predetermined direction, and in the course of the veneer travel, the hot wind of 140-200 degrees Celsius is sprayed vertically to the face and back surfaces of the veneer by the nozzle located between the two pairs of rollers with the wind speed of V=1.5M/S. Under the control of the electronic control system of the core veneer dryer, the optimal travel speed is adjusted to achieve the best drying effect. And the uneven veneer, after the relative rotation of the upper and lower rollers, can reach the effect of ironing the veneer inside the wood veneer drying machine.

Humidity Removal System

Humidity Removal System

The dehumidifying system of the ejector roller veneer dryer is operated by a number of dehumidify holes located in the machine, through the adjustment of the valve and adopt the function of the automatic damp removing system or the mechanical strong dehumidifying system to achieve the best effect of humidity discharge.

The shine veneer dryer humidity removal system is specially designed for users in cold northern regions. It can be installed separately on any of our dryer models. The Veneer Dryer Humidity Removal System is installed on the top of the Shine’s veneer dryer to quickly discharge the moisture inside the dryer to the outside of the workshop, avoiding the pre-condensation of steam caused by the temperature difference between the inside and outside of the dryer, and keeping the inside of the dryer dry and pressure balanced.

Jet Box Air Tubes for Veneer Dryer Machine

Jet Box Air TubesMaterial: Galvanized plate.
Jet box or air tubes in saw tooth thread design prevents veneer jam in the veneer drying process. The scientific design of the air tubes and nozzles ensures the hot air volume emitted to the veneer is sufficient.
The jet box is made of a galvanized plate including many nozzles. The waste wood chips are burned inside the biomass burner to generate smoke and flue gas. The high-temperature smoke and flue gas are blown to the flue gas channel and heat exchangers by the induced draft fans located on the two ends of the dryer. And the flue gas channel and heat exchangers became very hot. Then hot air fans collect the hot clean air emitted from the heat exchangers and blow to the jet boxes /air tubes and finally to the top and bottom of the moving veneer. In this way, the veneer is dried.

Customer Case

Customer Case

Our veneer dryers have won CE certificates and exported to more than 20 countries such as Latvia, Thailand, Laos, Malaysia, Cambodia, Brazil, South Africa, South America and etc.



The installation

The installation

1. The warranty period for the mechanical equipment part is one year from the start of production after installation, and the electrical part is six months.
2. Engineer guide installation service
3. Equipment replacement parts are available at discounted prices

The customer evaluation

The customer evaluation

Notes on the use of veneer dryer

Do not put a lot of boards at once

When using the veneer dryer for drying work, be careful not to place too many veneers at once in order to save trouble. This situation will affect the drying effect of veneer and cause a certain degree of damage to the equipment.

Placement of boards to ensure uniformity

In order to ensure the good drying effect of veneer, when placing the veneer, it is recommended to place the veneer with uniform thickness and size, so as to ensure the drying quality of veneer.

Pay attention to the ventilation of the equipment

In the process of drying, because the internal temperature of the equipment is high, attention should be paid to the heat dissipation of the equipment itself. In order to the drying effect and the long-term use of the equipment, when using, pay attention to keep the ventilation of the equipment heat dissipation.

Daily maintenance and repair

When the equipment is not in use, the equipment should be cleaned, the parts of the equipment should be inspected and repaired, and the parts and joints of the equipment should be maintained with lubricants.

About Shine

Shandong Shine Machinery Co.,Ltd has more than 100 employees. The company’s headquarters is located in Gaotang Industrial Park, a beautiful water city in the north of the river, and the production plant covers a total area of 100 mu. The company specializes in the production of wood veneer dryers, bridge formwork, automated livestock and poultry breeding equipment, special equipment for the production of construction materials, etc. With the advantages of many years of research and development, production, service and production capacity, the company has always been in the leading position in the same industry. Shine Machinery provides high performance, high quality products and one-stop service for customers, and can tailor different products to meet the needs of customers in different situations and provide customers with fast and optimized system solutions.

The company is far-sighted and implements a modern enterprise management system, making use of new sales concepts and service systems. With an annual investment of 20 million in scientific research, the company joins forces with various industrial universities in China to study the application of high-end technology, so that the various products of shine Intelligence are always at the forefront of technology in the industry. The company is very strict about the quality of its products, and every piece of equipment it produces meets the ISO9001 quality management system certification. The company has large CNC gantry milling machine, data flame cutting machine, plane mill, universal milling machine, vertical and horizontal sawing machine and other large production equipment, the introduction of foreign advanced technology, so that “Shine” equipment with reasonable design, reliable performance, high quality, low energy consumption, easy to operate, high output and many other advantages. The company’s products have won the praise of our customers for their high precision and high cost performance.


A: We are a factory who manufacture the machines by ourselves.
A: Normally will be 30 days after getting deposit or original LC.
A: 1 year after delivery. We supply telephone after-sale service, video service and e-mail service. If can not deal with the problem, our tech-staff will go abroad to service.
A:a.T/T(30% deposit, 70% before delivery in FOB or 70% paid against copy of B/L in CFR) b. 100% irrevocable L/C at sight.
A: Welcome to visit us! Everyday we have customers from different countries. By now, we have exported to more than 50 countries customer.
