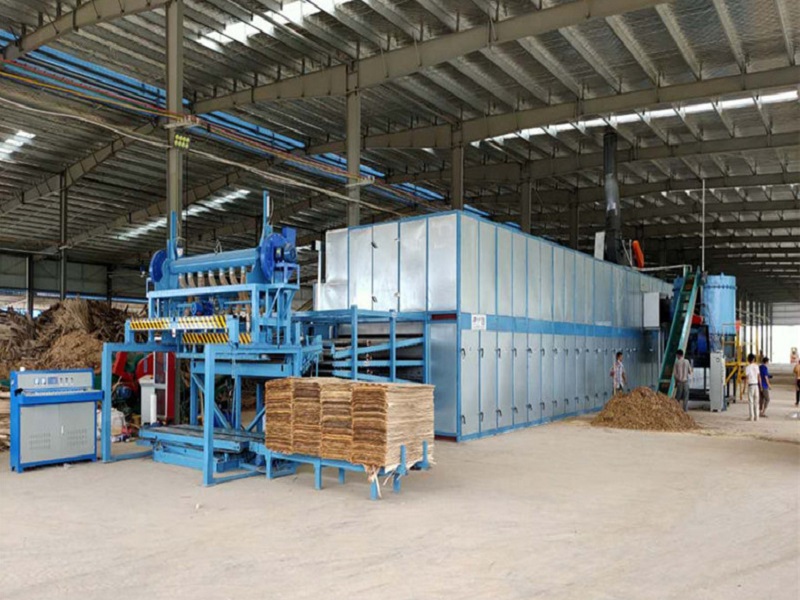

Wood Roller Veneer Drying Line
Wood Roller Veneer Dryer Line has the features of high drying veneer productivity, energy efficiency, lowest drying cost, and perfect veneer drying effect. The composite veneer drying cost is only about USD 10 per cubic meter, which can improve customers’ profit space most.
Description
Working Principle of Veneer Dryer
Wood Roller Veneer Dryer Line is one of the key processes in the veneer-making process or plywood-making process. Shine 4 deck veneer dryer is our newly developed high-end product to meet the high veneer drying capacity requirements of customers, which has the salient features of higher veneer drying capacity. The rollers are made of φ102 special shaft tube that is better quality than regular carbon steel. The bearings of the 4-deck veneer dryer are featured a high temperature of 500 degree Celsius resistance and a low temperature of -20 degree Celsius resistance, which no need for injecting oil and easy maintenance in daily operation. A shine veneer dryer is a product in the design of the continuous roller pressure type of hot air cylinder.
The Roller veneer dryer machine is using the most advanced continuous pressurized contact and its working principle is veneer drying technology in a steel tube under the clamping roller, two by preheating the dryer room temperature to 140-180 degree celsius at no more than 200-degree celsius, and then enter the upper and lower roller and through the hot air tube to the single board upside down between hot high pressure blowing for quick dry, so you can make sure the veneer is flat and uniform moisture content after drying core veneer. And shine veneer roller dryer heated by the biomass burner product has the characteristics of a high-temperature roller and wet veneer direct contact heat transfer, high thermal efficiency, and less thermal loss.
Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the veneer moving speed and temperature automatically according to different veneer thicknesses and moisture content to achieve an ideal drying effect. Equipped with an automatic veneer feeder and automatic veneer collection system, which not only improves the drying efficiency but also saves labor costs mostly. 4 deck Veneer Dryer is equipped with automatic temperature control and speed regulation system, which can accurately control the final moisture content. Shine biomass veneer dryer has the features of high productivity, energy efficiency, lowest drying cost, and perfect drying effect. Biomass burner is our patented product, which can save composite costs mostly. The heat exchanger adopts step-by-step heat transfer, and the specifications of each section of the heat exchanger are different, and the hot air in the heat exchanger can be uniformly emitted to the veneer. Shine veneer drying lines can achieve the best drying effect at the lowest cost.
1. Veneer Roller Dryer: working width customized 3.0m, 3.745m or 4.5m, heating section length 46meters and cooling section 4 meters length.
2. Jet nozzles/hot air tubes: made of high-quality galvanized plate, the overall shape is a variable section, the working surface is corrugated orifice plate, the width of the jet nozzles/hot air tubes is 200mm, and the thickness of the steel plate is 1.0mm galvanized sheet.
3. Insulation board: The thickness of the side insulation board is 80mm, and the panel is a 1.2mm galvanized sheet, lined with an aluminum silicate blanket. The thickness of the top insulation board is 75mm, and it is lined with a rock wool composite board.
4. The well-developed heat exchange system fully improves the energy utilization rate and saves unnecessary energy waste. It has obtained a national invention patent.
5. Traction motor: domestic high-quality electromagnetic speed-regulating motor and governor.
6. Electric control system: The main electrical components are all domestic brands. The control cabinet has a reasonable layout, a beautiful appearance, and easy operation.
7. The biomass burner developed by our company can use the black skin, white skin, saw head, and other waste wood produced by the veneer rotary cutting as fuel, which can obtain materials on site and turn waste into treasure. It greatly reduces the energy cost in the drying process of the veneer and is a truly energy-saving and environmentally friendly heating device for the dryer.
8. Automatic feeder and veneer collection system are installed for the veneer dryer. Only need 1-2 people at both ends of the dryer, which solves the problem of high labor intensity.
9. Less maintenance is required for the Shine veneer dryer and no veneer jamming/clogging leading to lesser downtime.
10. We have a professional R&D team that can design different models according to customers’ special requirements.
11. We have a perfect after-sale service system, which can supply 24 online services; remote operation is available on request, regular customer visits, and sufficient spare parts supply in time. Fully solve the worries of customers.
12. We have a professional R&D team that can design different models according to customers’ special requirements.
Product Parameters
Hot Air Circulation System
The salient advantages of hot air circulation inside a veneer roller dryer are as follows
For a traditional veneer roller dryer, the position of the hot air fan is on the top of the veneer roller dryer.
The position of the hot air fans is located on the side of the Shine roller core veneer dryer machine line. The advantages are as follows:
On the one hand, it can decrease the height of the equipment.
On the other hand, the heat is more concentrated and the heat loss is less. The motors of the hot air fans are on the side of the veneer dryer where the temperature is not so high, so the motors are in a suitable working condition which prolongs its working life.
Last but not least, it is very convenient for daily maintenance of the roller veneer dryer equipment.
Humidity Removal System
Shine veneer dryer’s patented moisture exhaust system is specially designed for users in cold northern regions such as the country of Russia, northern part region of China. The humidity removal system can be installed separately on any of our dryer models. The exhaust system is installed on the top of the Shine’s veneer dryer to quickly discharge the moisture inside the dryer to the outside of the workshop, avoiding the pre-condensation of steam caused by the temperature difference between the inside and outside of the dryer, and keeping the inside of the dryer dry and pressure balanced.
The veneer after drying has uniform moisture content and it is flat without buckle or end waviness.
The veneer after drying is free of splits and the surface is in good condition for gluing.
Shrinkage and casehardening is kept to a minimum and collapse and honeycomb are avoided.
Shine veneer dryer is equipped with automatic control system with merits of saving labor cost, easy operation and low failure rate. Main electrical components are international famous brands.
Shine veneer dryer adopts frequency conversion, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect.
Less maintenance is required for Shine veneer dryer and no veneer jamming/clogging leading to lesser downtime.
Customer Cases
Customer Visits
Q&A
- Q: How much does it cost to dry 1m³ veneer?
A: About $12, including labor, fuel, and electricity, will fluctuate with local prices. - Q: How to choose a product that is most suitable for me？
A: Our company has professional engineers to select the most suitable product according to your capacity and areas, saving you time and cost. - Q: Will it be difficult to install？
A: We will send professional engineers to guide us. In remote situations, engineers will video assist workers with installation. There have been many remote success stories. - Q: Can I see the real equipment and factory?
A: Yes. We can provide the location of the shine roller veneer dryer equipment that have put into production, and we contact and communicate with the users for you. Hence you can see our real equipment and its effects.
