Wood Veneer Peeling Machine
Shine veneer peeling line not only improves the quality and precision of veneer production,but also greatly improves the production efficiency and the degree of automation of the whole machine.
Description

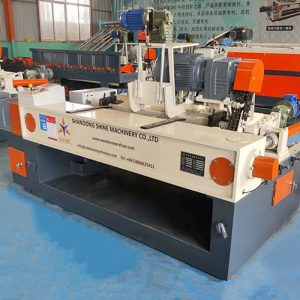

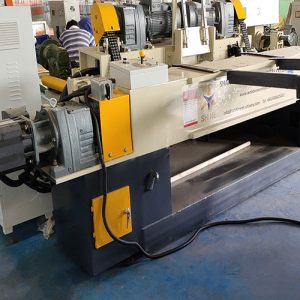

Veneer Peeling Machine has high production efficiency and high wood utilization rate. Spindleless veneer peeling machine is used for making veneer. This veneer peeling machine is designed for the rotary cutting of the logs with different hardness. All the motors adopt full servo motors, the speed of the rotary cutting is stable, the precision of high-speed rotary cutting is guaranteed, and the quality of the veneer is high.
8 feet veneer peeling line for plywood production line is main machine for plywood production. Normally the wood veneer splicing machine is used together with veneer dryers machine.It is used for a certain length and the diameter of the logs into continuous veneer tape,After shear become certain specifications of the veneer.The veneer peeling machine has very close relationship with plywood production and quality. the working efficiency will be highly improved by Shine veneer peeling line and drying line.
veneer peeling machine is a main machines for plywood production and can be used for rotary cutting the round wood with a diameter less than 500mm with the high utilization rate of wood. Suits the production of high-level plywood and other woodworking industries. Making the high-quality rotary peeled wood veneers. Except for veneer peeling machine, plywood veneer dryer and face veneer dryer also are normal machines for plywood production line.
This machine can be equipped with log conveyor and log core conveyor machine,full automatic,save labor and improves working efficiency.
This machinese adopts rotary cutting principle of non-chunk rotary lathe.Driven by hydraulic pressure,can remove bark quickly and effectively and make log rounding.
Main Features
1.after the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade.
2.adopts rotary cutting principle of non-chuck rotary lathe.
3.hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work.
4.competive price and quality.
5.Min.log diameter 140mm,max.log diameter 500mm/800mm/1500mm/2000mm(special log debarker，can be customized based on large log diameter)
Product Parameters
| log peeling length | 970mm-1270mm |
| veneer peeling width range | 660-2600mm |
| veneer thickness peeling range | 1.0-4.0mm |
| peeling speed | 48m/min |
| Total power | 62.7kw |
| Total weight | 13000kgs |
| Overall dimension | 5800*2300*1500mm |
Certificate
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Product Transportation
