Woodworking Veneer Dryer Machine For Sale
Roller veneer dryer is a new generation wood veneer drying machine. It adopts the latest international pressure contact veneer drying technology to ensure the veneer is heated evenly. It can be used to dry rubber wood, eucalyptus, birch, teak, all kinds of hard wood and soft wood veneer etc.
Description
Product Description
Shine biomass veneer dryer has features of high productivity, energy efficiency, lowest drying cost and perfect drying effect. Some of the outstanding faetures include our patent product Biomass Burner,Heat Exchanger and Automatic Feeder Device. The veneer drying machine has the minimum electrical and fuel consumption, maximum production, quality than the best and energy efficient as well. The veneer is fed into the dryer and moved through the dryers by running rollers and at the same time the hot air blows the surface and back of the veneer to achieve the drying effect. We can different type veneer dryers machine to meet users special capacity requirements.
Shine veneer dryer’s patented moisture exhaust system is specially designed for users in cold northern regions. It can be installed separately on any of our dryer models.
The Main advantages of Biomass Burner
1.Smokeless, energy saving and environmental
2.Low cost，waste wood does not need to be dried in the sun and can be burned directly, reducing the cost of drying.
3.High temperature, large yield, full combustion
4.high efficenency ,under the traditional way, the venee easy to crack after long-term exposure. and it’s affected by the weather; however, veneer dryer drying is not easy to deformation, low damage rate, high product rate.
Product Parameters
|
Model No |
GTH30-20 |
|
Working Width |
3.0m |
|
Deck |
4 |
|
Roller material |
Q235B, φ102 special shaft tube |
|
Heating area length |
16m |
|
Cooling area length |
4m |
|
Veneer thickness and size |
0.6-8mm |
|
Veneer water moisture |
Fresh veneer to about 8-10% |
|
Heating material & drying temperature |
Waste wood, 140-200°C adjustable. Temperature control accuracy ±5°C. There is automatic temperature control and speed regulation system, which can guarantee the moisture content is consistent. |
|
Drying capacity (m³/h) |
2.5 |
|
Veneer transport speed |
5-22m/min，16A chain |
|
Hot air blower |
Power: 4KW（16pc） |
|
Traction motor |
Power: 5.5KW，frequency control（4pc） |
|
Cold air blower |
Power: 4KW（8pc） |
|
Air intake fan |
Power: 11KW（1pc） |
|
6 ton biomass burner |
Power: 16.5KW |
|
Total power |
145.5KW |
|
Actual electricity consumption |
About 100kwh per hour |

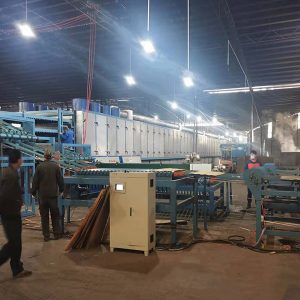

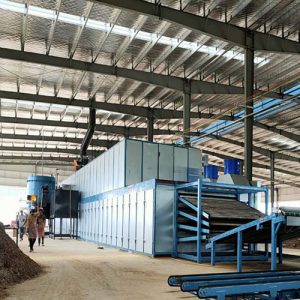

Customer Case
Parts of Veneer Dryer
Certificate
Customer Visits
Our Services
Pre-sale services:
1) Provide the free consultation of all Core Veneer Dryer Machine
2) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
3) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
Product Packaging And Transportation
FAQ
1. How much does it cost to dry 1m³ veneer?
About $12, including labor, fuel, electricity, will fluctuate with local prices.
2. How to choose a product that is most suitable for me？
A：Our company have professional engineer to select the most suitable product according to your capacity and areas, saving your time and cost.
3. Will it be difficult to install？
A: We will send professional engineers to guide. In remote situations, engineers will video assist workers with installation. There have been many remote success stories.
4. Can I see the real equipment and factory?
Yes. We can provide the location of the equipments that have put into production, and we contact and communicate with the users for you. Hence you can see our real equipment and its effects.
